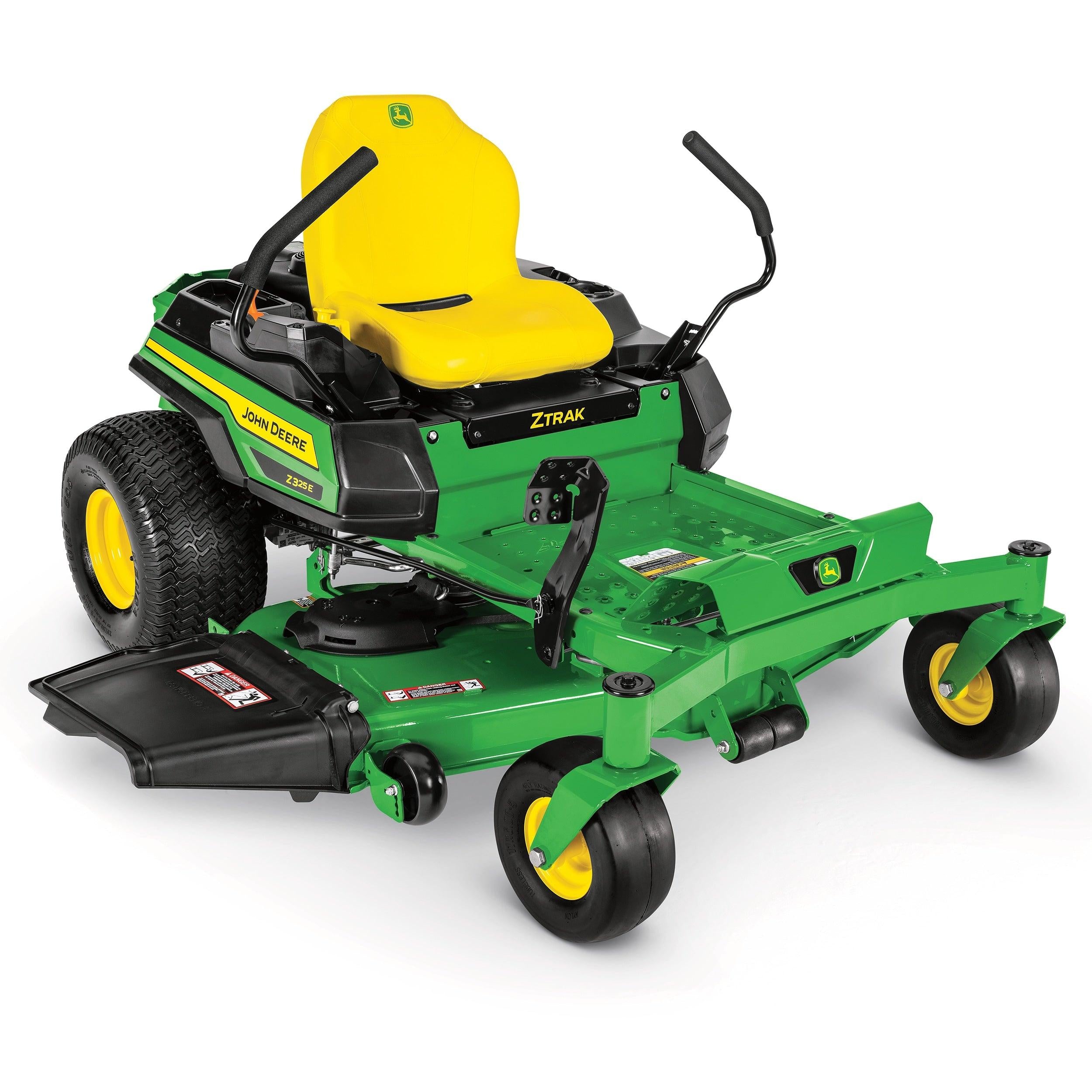

John Deere Z330M ZTrak™ Zero Turn Mower: 23 HP Kawasaki® V-Twin, 54″ Forged Accel Deep™ Deck
Experience the pinnacle of residential zero-turn performance with the John Deere Z330M ZTrak™ Mower, available now at Mskeyify. Built in Greeneville, TN, this machine is engineered for homeowners with 3 to 5 acres who demand commercial-grade features and exceptional cut quality. Featuring a powerful 23 HP John Deere Branded – Kawasaki® V-Twin engine (FR691V) and a massive 54-inch forged Accel Deep™ mower deck with 10-gauge steel, the Z330M delivers superior performance at mowing speeds up to 7 mph.
🔧 Key Features & Benefits
✅ Powerful 23 HP Kawasaki® V-Twin Engine

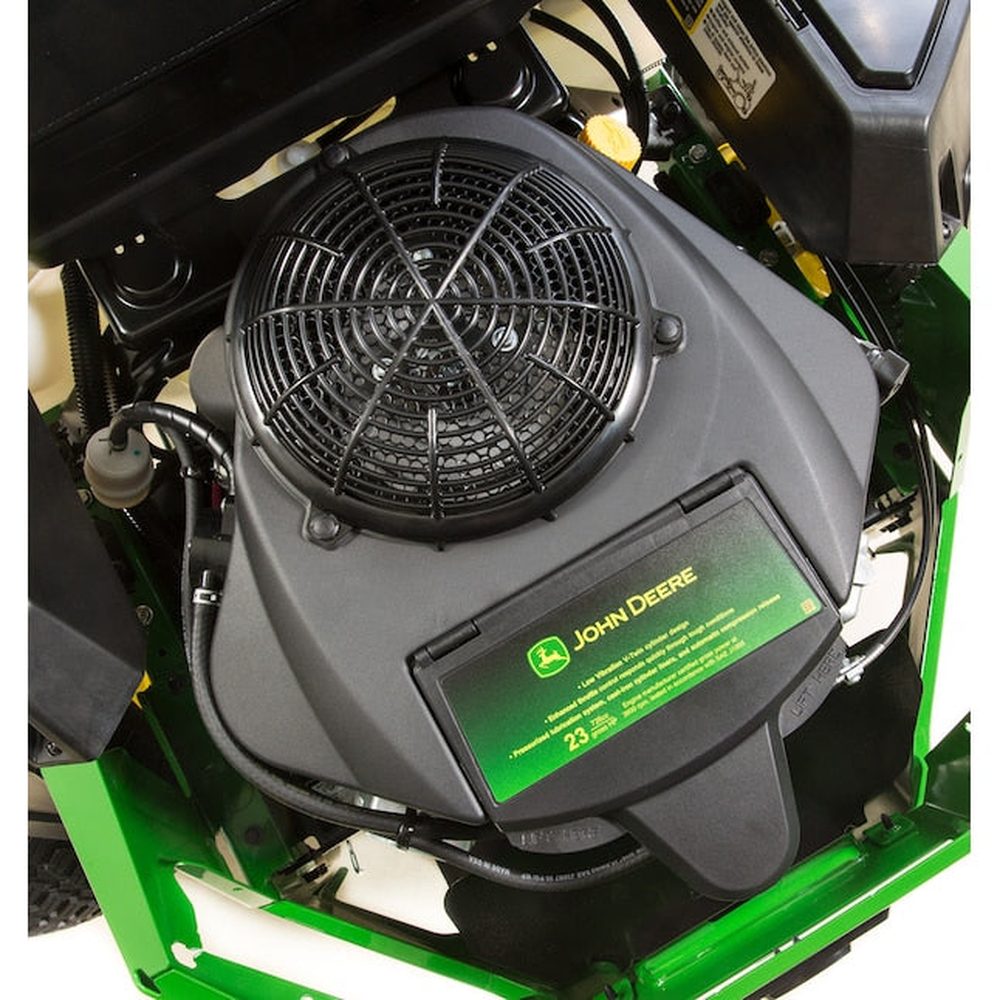

Experience smooth, reliable power from the 23 HP (17 kW) John Deere Branded – Kawasaki® V-Twin engine (Model FR691V) with 726cc displacement. This engine features V-twin cylinder design for greater torque, lower vibration, and improved sound quality, plus full-pressure lubrication and cast-iron sleeves to extend engine life. A rear engine guard protects the engine from damage.
✅ 54″ Forged Accel Deep™ Mower Deck

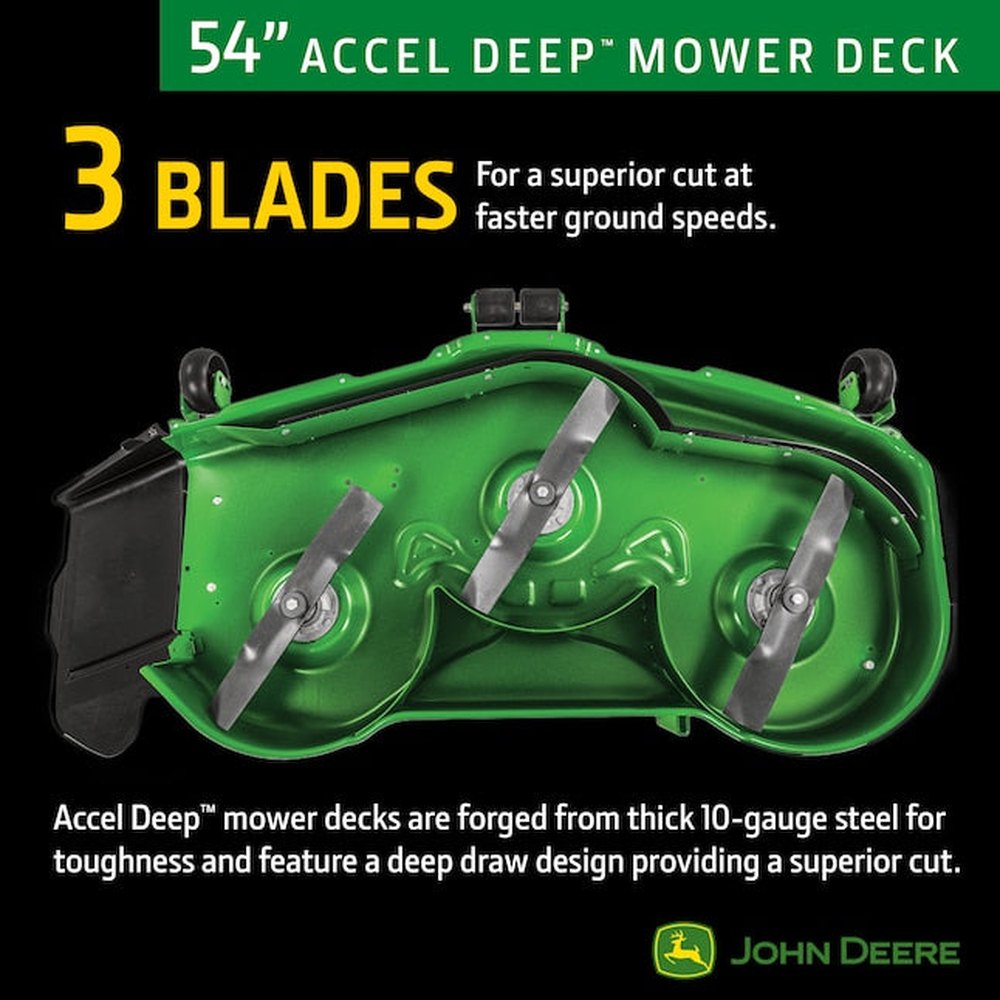

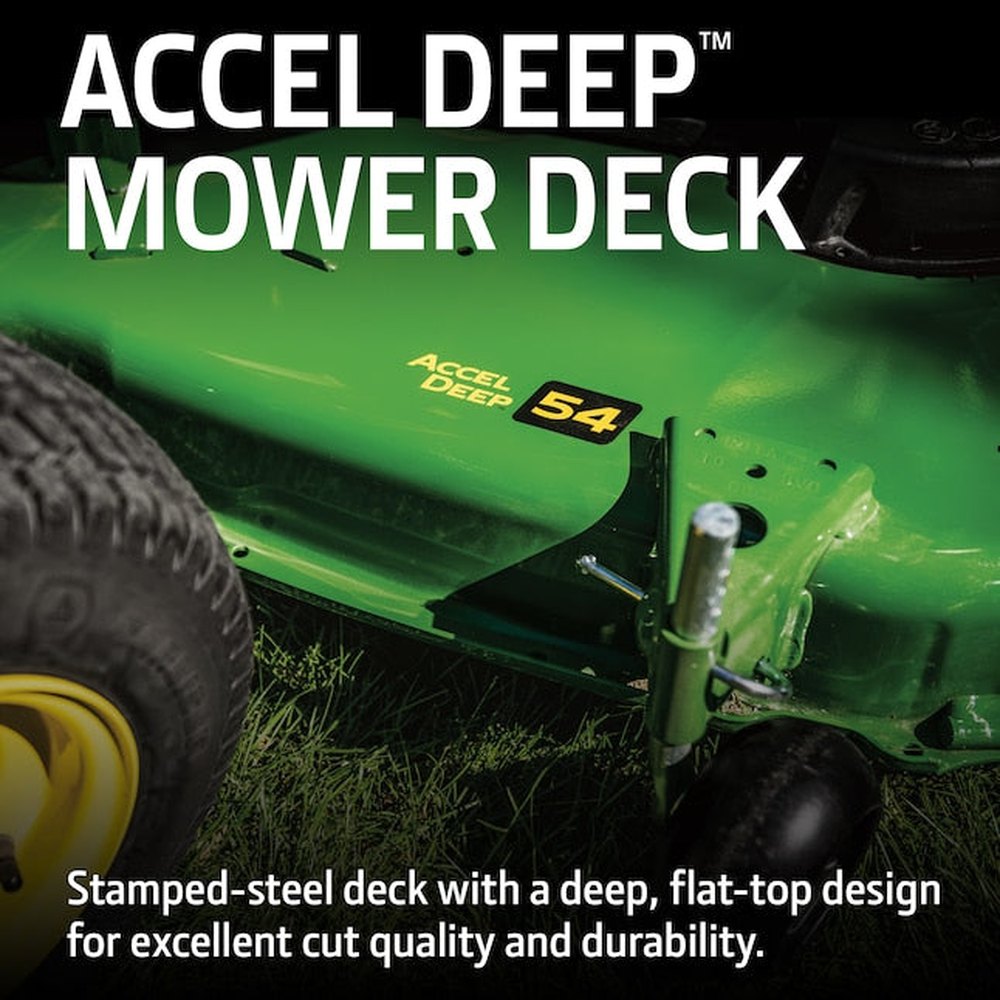

The 54-inch (137 cm) forged Accel Deep™ mower deck features a forged-steel, deep flat-top design with 10-gauge steel construction for exceptional durability. Its smooth underside and large discharge opening increase airflow to process more grass faster, delivering best-in-class cut quality—even at higher mowing speeds or in tall grass. Features 4 anti-scalp wheels for superior turf protection.
✅ Zero-Turn Speed & Premium Comfort
Cover ground quickly with a maximum forward speed of 7 mph (11.2 km/h) and a 3-gallon (13.6-liter) fuel tank, mowing up to 3.5 acres efficiently. The Z330M features a tougher frame, large 11-inch front pneumatic caster wheels for a smoother ride, and 20-inch rear wheels for enhanced stability. The premium 20-inch high-back custom-tailored seat with adjustable armrests ensures exceptional comfort during long mowing sessions.
✅ Convenient Features & Included Accessories

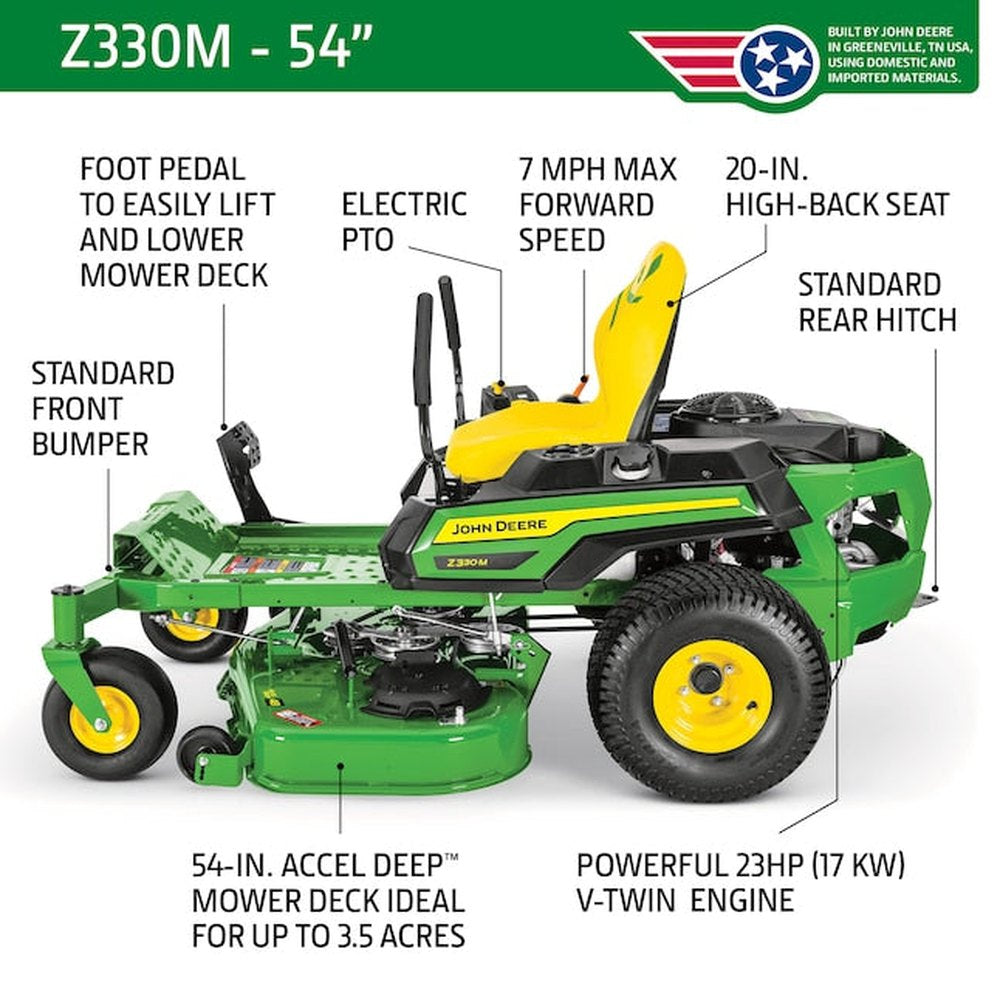

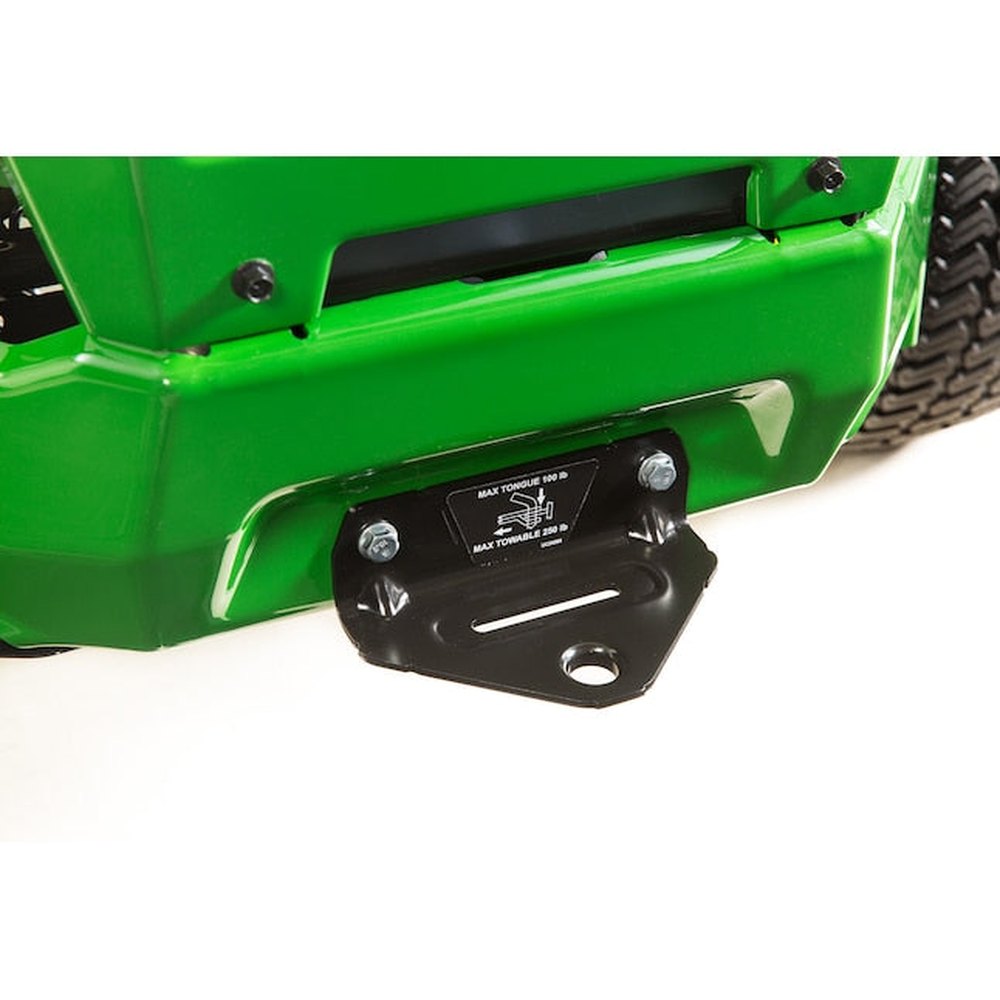

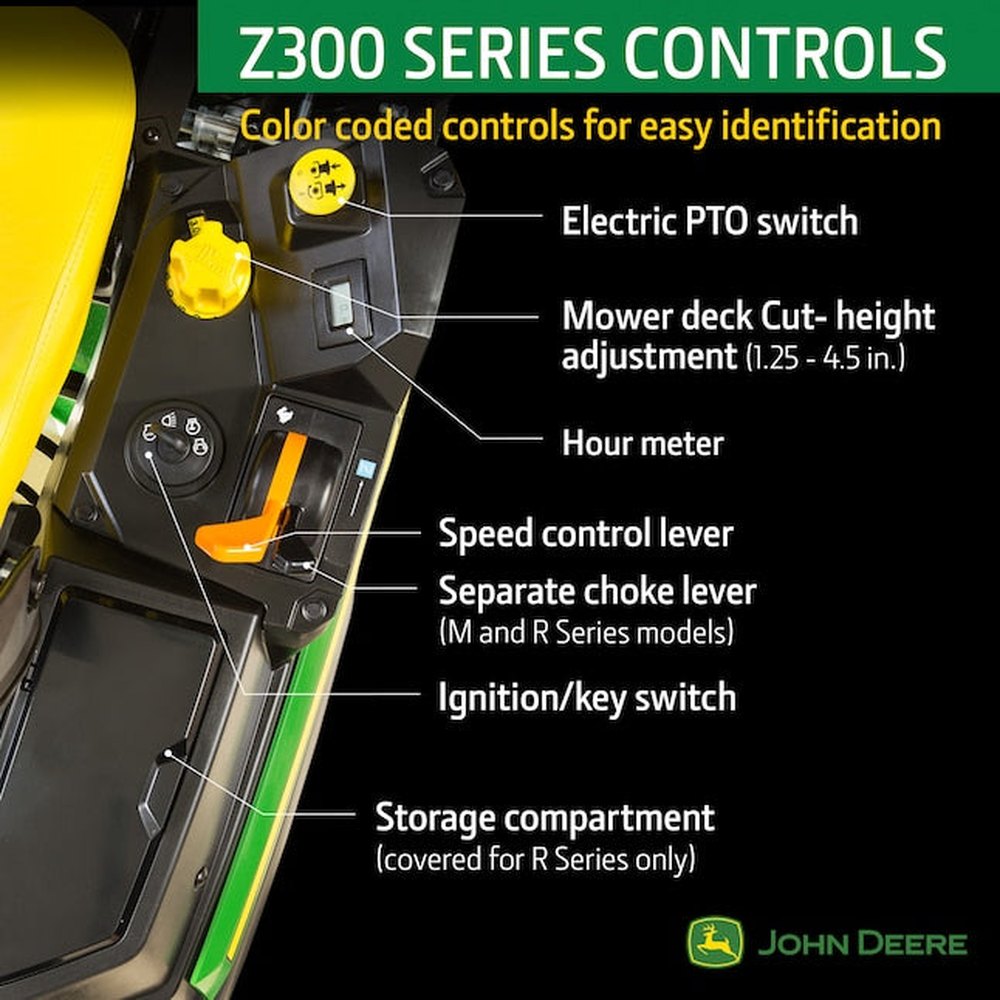

The Z330M comes standard with a rear hitch and front bumper for added versatility and protection. The convenient foot lift easily raises the mower deck to set cutting heights from 1.25 to 4.5 inches. The integrated park brake automatically engages when the steering levers are moved outward for added safety. Adjustable motion control levers and a large foot platform keep you comfortable and secure.
📋 Complete Technical Specifications
| Engine | 23 HP (17 kW) John Deere Branded – Kawasaki® V-Twin (Model FR691V), 726cc |
| Engine Features | Full-pressure lubrication, cast-iron sleeves, rear engine guard |
| Deck Type / Width | 54″ (137 cm) Forged Accel Deep™ Mower Deck, 10-gauge steel |
| Number of Anti-Scalp Wheels | 4 |
| Blade Engagement (PTO) | Electric |
| Number of Blades | 3 |
| Transmission | Dual Hydrostatic |
| Cutting Height Range | 1.25″ – 4.5″ (32 – 114 mm), 12-position, foot lift |
| Forward Speed (Max) | 7 mph (11.2 km/h) |
| Reverse Speed (Max) | 3.5 mph |
| Fuel Capacity | 3 Gallons (13.6 Liters) |
| Engine Oil Capacity | 70.4 oz |
| Weight | 609 lbs (276 kg) |

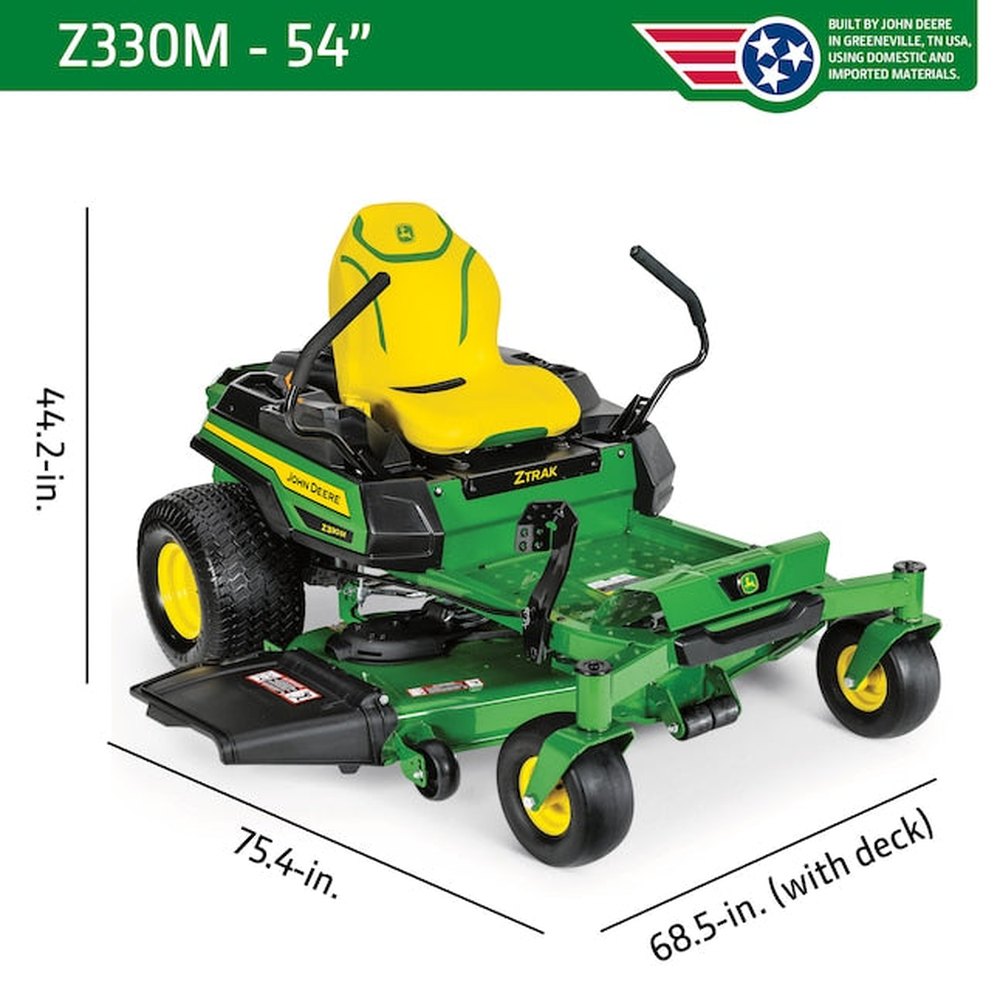

| Overall Length | 77.8 inches |
| Overall Width with Deck | 68.5 inches |
| Seat Type | 20″ Premium High-Back Custom-Tailored Seat with Adjustable Armrests |
| Wheels | Front: 11″ Pneumatic Casters, Rear: 20″ |
| Deck Wheels | 5″ Anti-Scalp Wheels (4) |
| Frame / Front Axle | Tougher reinforced frame / Cast iron front axle |
| Included Accessories | Rear Hitch, Front Bumper |
| Additional Features | Integrated Automatic Park Brake, Adjustable Motion Control Levers, Large Foot Platform, Cup Holder |
| Warranty | 3-Year / 200-Hour Bumper-to-Bumper Limited Warranty |
| Recommended Yard Size | 3 to 5 acres |
| Maximum Acreage | Up to 3.5 acres |
| Built In | Greeneville, TN, USA |
🚚 Free Shipping & Hassle-Free Ownership
🚚 Free Shipping: At Mskeyify, we are committed to providing you with more value. Enjoy FREE shipping on this John Deere Z330M ZTrak™ mower to all locations across North America. Your order will be professionally inspected and delivered safely and quickly to your door.
🛡️ Industry-Leading Warranty & Support: This mower comes with a 3-year/200-hour bumper-to-bumper limited warranty—the most comprehensive in the riding lawn equipment category. Backed by your local John Deere dealer, factory-trained service professionals ensure your equipment keeps working as hard as you do. Includes a 10-Point Pre-Delivery Inspection prior to sale.
